3000B/H filling production line

 Today's Quotation list

Total FOB China Port Price : USD 115755 / SET





List price for whole bottling line    unit’s



product	model	capacity	unit	Qty.	U/P($)	Amount
washing filling capping 3 in 1 unit	XGF	3000P/h	set	1	18800	18800
barcode printing machine			set	1	4800	4800
heat shrinkable film machine	WD150A		set	1	2100	2100

 Price list and Equipment table Blow Molding Machine

Name	Spec.	Qty.	Unit (USD)	Amount (USD)	Note
Blow Molding Machine	CM-8Y	1	6300	8300$	Including 2-main machine and 1- Infrared oven

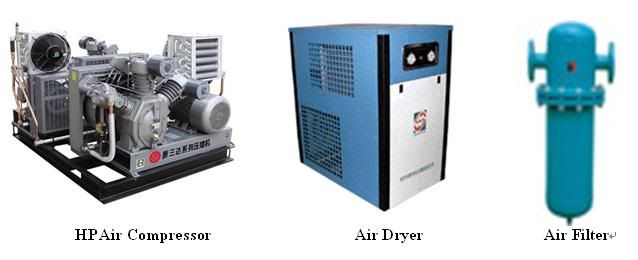

HP Air compressor	1.0m3/min 30kg	1	2130	2130$
Air dryer	1.0m3/min 30kg	1	1175	1175$
Air  filter	2.0m3/min 30kg	2	175	350$
Blow mould	600ml	2	350	700$
	1000ml	2	500	1000$
	1500ml	2	650	1300$
Injection molding machine	TW-2000	1	17300	17300$	500ML
	TW-3280	1	27800	27800$	1500ML
Molds	500ML	1	15000	15000$
	1500ML	1	15000	15000$
Note: For 500ml, 1500ml mold 500ml: 950*550*400    1500kg    material: S136 materail with core, and P20 for mold base 1500ml: 950*550*500      1300kg    material : S136 materail with core, and P20 for mold base   1.       The above Plant is operated by 2person 2.       For molds: 500ml, 1500ml : 20cavity,hot-runner,P20 material,self-locked 3.       Both of 20 cavity are according to your production capacity (3000bottle) 4.       Services: charges for abroad and 25USD everyday for engineer is to buyers’ account.

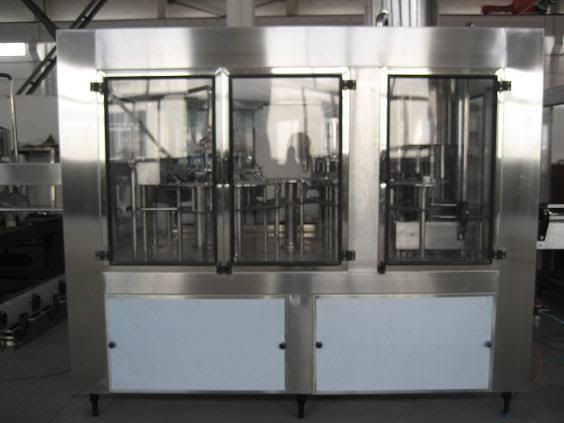

1. 2. 3. ) Bottle filling production line XGF24/24/8 washing,  filling,  capping 3 in 1 unit



1. Process for production line
2. Main equipment instruction
3. Scope and price for supplying



         A、：operating principle

Bottles which are tidy up are put on the equipment by men ,then enter washing equipment. Rotaring 180degree to wash inner and outside of bottles ,after that bottles are transferred to No1 filling equipment for filling and capped in No2 capping equipment. last go to placing cap



B、 UNIQUE CHARACTERISTICS：

1. Used for producing fruit juice ,mineral water, pure water ,washing, filling ,sealing on No1 machine.
2. Import advanced technical from Japan and Italy. adopts accuracy pressured filling mechanism. and fast speed filling  liquid level stability, no drip .
3. Spring loaded cleaning forceps efficiently clean both inside and out. Rotary 180degree
4. Magnetic powered cap placement ensures tightness yet prevent bottle damage. rotary cap installer will not damage caps.
5. Advanced industrial human-machine interface control. High quality international name brand key components.
6. Suspension-style neck-catching structure ensuring bottle type changing convenience simply by adjusting the height of the suspension belt.

C、Main technical parameter

number of threads for washing      18

number of threads for filling        18

number of threads for capping       6

production capacity   (1500ml)     3000b/h

height of suitable bottle           160～320mm

diameter for suitable bottle         ф50～ф100

suitable tectiform            plastic screw cap

total power                   7.63kw

water pressure for washing     0.18Mpa

water quantity for washing     1500 kg/h

air press                       0.4Mpa

overall dimensions              3200x2200x2250mm

weight                          4500 kg



4.) Barcode Printing Machine

 Function:

print the production date on the body or cap of bottle.

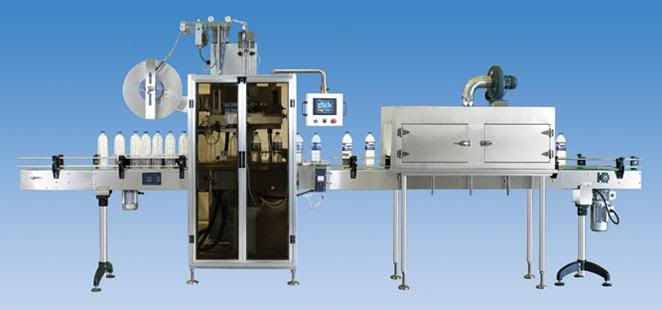

5. ) Label Placing Machine



TB series of automatically tunica-shrinkage labeling machines are the new-launch groups utilized the international advanced technology. The machines adopt high quality stainless steel and aluminum alloys abundantly to rationalize the structure and handle easily. The touch screens used on controlling circuits are easy to learn and handle. As the brand new design conception and excellent circuit design, the adjustments on a lot of equipment are decreased, and the production speed and precision of the label cutting is improved extremely.



UNIQUE CHARACTERISTICS：



Advanced industrial human-machine interface control. High quality international name brand key components.
Can easily be fitted and used in conjunction with other Lonhon product lines.
Uniquely designed blade holding seat which need not be replaced. Changing blade is fast and easy.
Adjustment for use with various bottle types and sizes can be made without the use of tools.
Forced insertion design is convenient and effective.
Integrated features make adjustment for changing bottle type more convenient.
Accommodates 5"~10" core size labeling materials.
Adjustable label insertion core.





6. )Heat Shrinkable Film Machine

   main technical parameter

overall  dimensions	L5050*W2100*H2100
heat shrinkable channel size	L3700*W920*H1800
max package size	L600*W400*H350
package speed	10-15
height for conveying belt	920（adjustable 200）
Working rated power	Three- phase five-wire system 380V 20KW
Working air press	0.6-0.8Mpa







7.) Blow molding machine



(1)CM-8YSemiautomatic bottle blow molding machine cam produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide shape and dimater.It has automobile system with high efficiency.The distant infrared ray heat pipe are used in themachine.It has high pressure protcction with the feature of precisely removing mould .The machine has nosie.It is easy to maintain .It is the equipment for producing PET bottles.









2)The main technical index:

 A: Max volume of products         100ml-2000ml

B: Max capacity of production       1600PCS/H

C: Power voltage                  230/400V

D: Heating Power                 14Kw (7.2)

E: Air source power                2.5Mpa

F: Min removing range of mold      80mm

G: Max size of mold               200*350*380

H: Center distance between two molds 350mm

L: Max stretching length            200mm

J: Weight                        1200Kg (Blow Molding Machine&Oven)

K: Measurements:   Blower        160*60*161CM

                  Oven         187*63*145CM



CM-8Y Blow Moulding Machine





  500ml Bottle Mould



8.) injection molding machine

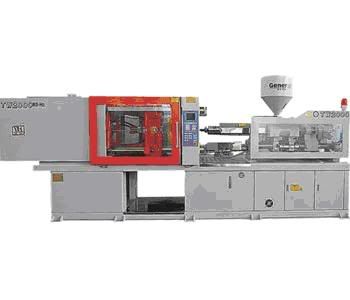

TW-2000  (500ML)


Part	Name of item	Unit	TW-2000
			A	B	C	D
Injection	cylinder head volume	cm3	340	425	515	610
	shot weight	g	306	380	460	540
	screw diameter	mm	45	50	55	60
	injection pressure	Mpa	219	177	146	123
unit	rate of injection(PS)	g/s	132	160	205	235
	plastising rate (PS)	g/s	26	32	38	42
	screw speed	rpm	180
	screw length/ diameter ratio	L/D	23.3	21	19	17.5
Clamping	clamping force	KN	2000
	max mould opening stroke	mm	460
unit	distance between the tie bars	mm	510×461
	allowed moukd thickness	mm	200-500
	ejection force	KN	53
	ejection stroke	mm	130
	dia of mould location hole	mm	ø160H7
	sphere diameter of spray nozzle	mm	SR15
	nos of liftout rod		9
	max mould-shift speed	m/min	30
Others	Heating capacity of screw cylinder	KW	11.5
	Pump motor power	KW	18.5
	oil tank capacity	L			500
	rated pressure of oil pump	Mpa	16
	Machine dimensions	mm	5010×1360×2050
	Machine weight	t	7

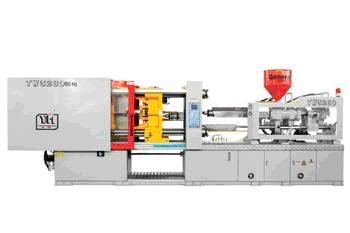

TW-3280 (1500ML)



Name of item	Unit	TW-3280
		A		B	C
cylinder head volume	cm3	787		924	1070
shot weight	g	750		880	1000
screw diameter	mm	60		65	70
injection pressure	Mpa	184		156	135
rate of injection(PS)	g/s	262		308	350
plastising rate (PS)	g/s	38		52	62
screw speed	rpm	160
screw length/ diameter ratio	L/D	22.7	21		19.5
clamping force	KN	3280
max mould opening stroke	mm	585
distance between the tie bars	mm	630×630
allowed moukd thickness	mm	220-620
ejection force	KN	70
ejection stroke	mm	150
dia of mould location hole	mm	ø160H7
sphere diameter of spray nozzle	mm	SR15
nos of liftout rod		13
max mould-shift speed	m/min	44
Heating capacity of screw cylinder	KW	16.55
Pump motor power	KW	30
oil tank capacity	L		620
rated pressure of oil pump	Mpa	16
Machine dimensions	mm	6350×1750×2260
Machine weight	t	11
